Pipe fittings and flanges that match your line
Butt-weld, socket-weld and threaded fittings with flanges, gaskets and stud bolts in the same material and pressure class, so everything on the joint is quoted together.
- Sizes
- ½" – 24" (larger on request)
- Flange classes
- Class 150 · 300 · 600 · 900 · 1500
- Forged fitting classes
- Class 2000 · 3000 · 6000
- Carbon steel
- A105 · A234 WPB
Fittings & flanges we supply
Butt-weld and forged fittings, flanges, gaskets and stud bolts in matching class. Every line is quoted with its standard, material and lead time.
Butt-weld fittings
Elbows (45° / 90°, long and short radius), tees, concentric and eccentric reducers and caps for welded pipelines.
Forged fittings
Socket-weld and threaded elbows, tees, couplings, unions and plugs for small-bore, high-pressure lines.

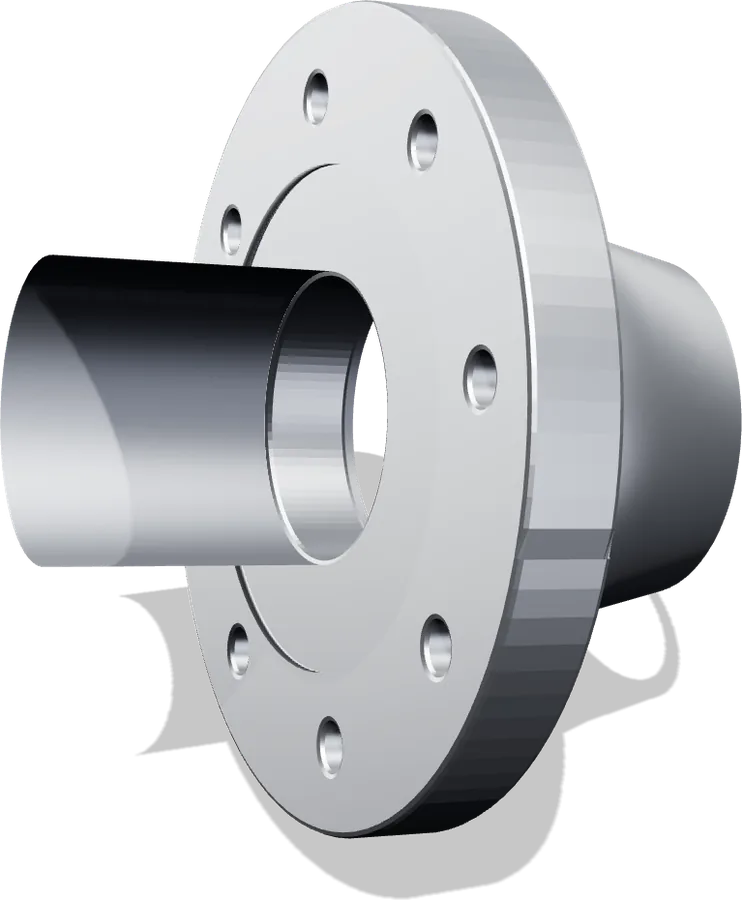

Flanges
Weld neck, slip-on, blind, socket-weld, lap joint and threaded flanges, raised face or ring joint.
Gaskets
Spiral-wound, ring-type joint and non-asbestos sheet gaskets sized to your flange class.
Stud bolts & nuts
Full-thread stud bolts with heavy hex nuts, sized to the flange and pressure class.
Olets & specials
Weldolets, sockolets, threadolets, swage nipples and spectacle blinds for branch connections and isolation.
Range at a glance
Need something outside this range? We import to your specification and mark the lead time on the quotation.
- Sizes
- ½" – 24" (larger on request)
- Flange classes
- Class 150 · 300 · 600 · 900 · 1500
- Forged fitting classes
- Class 2000 · 3000 · 6000
- Carbon steel
- A105 · A234 WPB
- Stainless
- A182 F304 / F316 · A403 WP304 / WP316
- Facings
- Raised face · flat face · ring-type joint
- Standards
- ASME B16.5 · B16.9 · B16.11 · B16.20 · B16.47
- Documents
- Mill test certificates on request
Industries we supply
See the service conditions we plan for in each industry.
Oil, gas & refineries
High pressure, high temperature and flammable media, with turnaround deadlines that do not move.
View industryPetrochemicals & fertilizers
Ammonia, urea and acids attack the wrong alloy fast, and constant temperature cycling works against packing and gaskets.
View industry
Power generation
Boiler, feedwater and cooling water circuits run hot and continuously.
View industry
Shipbuilding & marine
Seawater pits standard stainless steel and strips zinc from brass.
View industryFittings & flanges questions
Which flange type should I use?
Weld neck flanges suit high-pressure, high-temperature and cyclic service. Slip-on flanges are easier to align and suit lower-pressure lines. Blind flanges close a line end, and socket-weld flanges suit small bore. Your piping class usually specifies the type.
Why do my flanges leak?
Most flange leaks come from uneven bolt load, a reused or wrong gasket, or damaged facings. Tighten in a star pattern in stages, use a new gasket of the correct type and rating, and check the facing before assembly.
Can you quote a complete joint?
Yes. Send the line size, class and material and we will quote flanges, gaskets and stud bolts together so every part matches.
Do you supply larger flanges above 24 inches?
Yes, to ASME B16.47 Series A or B on request. Lead times are shown on the quotation.
Related products
Industrial valves
Gate, globe, check valves and Y-strainers in cast steel, forged steel, stainless, cast iron and brass.
View rangeBall & butterfly valves
Floating and trunnion ball valves, wafer and lug butterfly valves, actuators and solenoids.
View range
Steel pipes
Seamless and ERW carbon steel, stainless steel and galvanized pipe in SCH 10–160.
View rangeSend your list.
We’ll price every line.
Send an MTO, a spec sheet or a nameplate photo. You get an itemized quotation within 24 hours, with stock and import lead times marked.
