Ball, butterfly and actuated valves
Quarter-turn valves for fast, reliable isolation, from lever-operated ball valves to gear-operated butterfly valves and fully automated packages with pneumatic or electric actuators.
- Sizes
- ¼" – 24"
- Pressure ratings
- Class 150 – 1500 · PN16 – PN40
- Body materials
- WCB · A105 · CF8M · ductile iron · brass
- Seats
- PTFE · RPTFE · metal-seated · EPDM · NBR
Ball & butterfly valves we supply
Floating and trunnion ball valves, wafer and lug butterfly valves, actuators and solenoids. Every line is quoted with its standard, material and lead time.
Floating ball valves
Compact quarter-turn isolation with tight shut-off. The usual choice for small and medium sizes in water, air, oil and chemical lines.
Trunnion ball valves
The ball is supported top and bottom, so operating torque stays manageable in large sizes and high pressure classes.

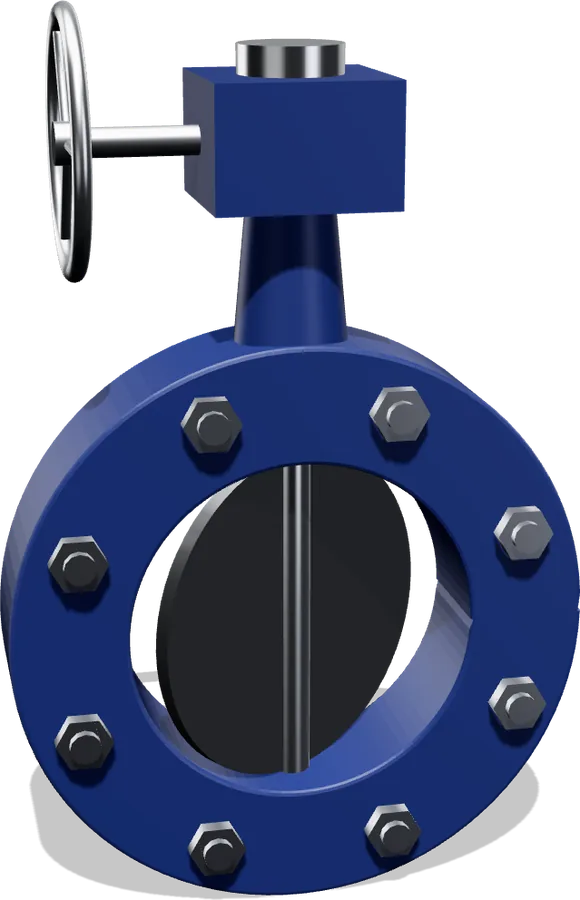

Butterfly valves
Light, short and economical isolation for water, cooling and utility lines, especially in larger sizes.
Pneumatic actuated valves
Fast, reliable automation. Spring-return actuators give a defined fail-safe position if air supply is lost.
Electric actuated valves
Remote or programmable operation where compressed air is not available. Specify a fail-safe option if the process needs one.
Solenoid valves
Direct and pilot-operated valves for water, air, steam and light oils in automation and dosing.
Range at a glance
Need something outside this range? We import to your specification and mark the lead time on the quotation.
- Sizes
- ¼" – 24"
- Pressure ratings
- Class 150 – 1500 · PN16 – PN40
- Body materials
- WCB · A105 · CF8M · ductile iron · brass
- Seats
- PTFE · RPTFE · metal-seated · EPDM · NBR
- Operation
- Lever · gear · pneumatic · electric
- Actuator options
- Spring return · double acting · positioner · limit switches
- Design standards
- API 6D · API 608 · API 609 · ISO 5211 mounting
- Voltages
- 24 V DC · 110 V AC · 220 V AC
Industries we supply
See the service conditions we plan for in each industry.
Pharmaceuticals & food
Process lines must resist cleaning chemicals, stay easy to clean and keep the product free from contamination.
View industryShipbuilding & marine
Seawater pits standard stainless steel and strips zinc from brass.
View industry
Manufacturing & utilities
Water, compressed air and steam lines are where unplanned downtime usually starts.
View industry
Oil, gas & refineries
High pressure, high temperature and flammable media, with turnaround deadlines that do not move.
View industryBall & butterfly valves questions
Should I choose a ball valve or a butterfly valve?
Ball valves give tighter shut-off and suit higher pressures and smaller sizes. Butterfly valves are lighter and more economical in larger sizes on water and utility lines. Tell us the size, pressure and media and we will recommend one.
What does fail-safe mean for an actuated valve?
It is the position the valve moves to if air or power is lost. Spring-return pneumatic actuators can be set to fail closed or fail open. Most standard electric actuators stay where they are unless a spring-return or battery-backup option is added.
What is the difference between NC and NO solenoid valves?
A normally closed (NC) valve stays closed until the coil is energised. A normally open (NO) valve stays open until energised. Choose based on the safe state if power fails and on which position the valve spends most of its time in.
Can you supply complete actuated packages?
Yes. We supply the valve, actuator, mounting kit, solenoid and limit switch box as one assembled and tested package.
Related products
Industrial valves
Gate, globe, check valves and Y-strainers in cast steel, forged steel, stainless, cast iron and brass.
View range
Steel pipes
Seamless and ERW carbon steel, stainless steel and galvanized pipe in SCH 10–160.
View range
Fittings & flanges
Butt-weld and forged fittings, flanges, gaskets and stud bolts in matching class.
View rangeSend your list.
We’ll price every line.
Send an MTO, a spec sheet or a nameplate photo. You get an itemized quotation within 24 hours, with stock and import lead times marked.
